Description

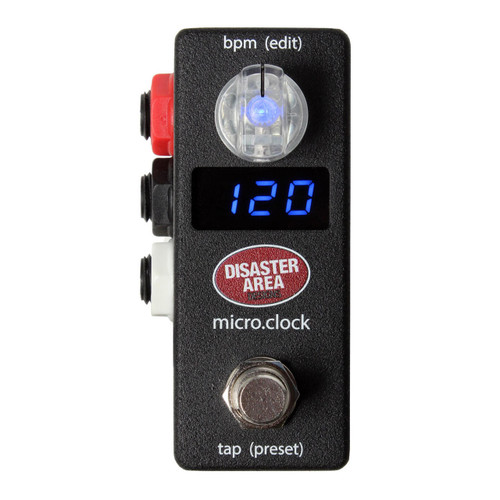

The Micro Clock Tap Tempo Pedal by Disaster Area is an intuitive tap tempo and clock controller for your pedalboard. You can press the footswitch to set the master your tempo, it will then send taps to your devices to lock them in to your music. The Micro Clock also has subdivisions to allow you to tap in quarter-notes and set your devices to dotted-eighths, eight-notes, or triplets. It then allows you to save each set as a preset for quick on the spot access. If you’re looking to use another pedal in an obscure or unusual tempo arrangement, Disaster Area works with most devices that can accept a normally open or closed footswitch. A wildly useful addition to anyone’s rig!
Features:
-MIDI Clock output synchronizes a connected MIDI device
-Two isolated optical relay powered Tempo Outputs or Function Switch Outputs
-MultiJack Connector: Tempo Outputs, Function Switch Outputs, Control Voltage Output, Footswitch Inputs or MIDI Outputs (requires adaptor cables)
-Up to 99 user-accessible presets
-Sends tap signals and clock from 30-240 beats per minute
-Power Supply: 9V DC Adapter
-Working Voltage: 9V
-Current Draw: 60mA
Tap Outputs Compatibility
Alexander Pedals: History Lesson, Super Radical, Oblivion, Radical Delay, Chesapeake, Equilibrium DLX, Super
Radical, Oblivion, Radical Delay, History Lesson, F.13 Neo, Syntax Error
BOSS: DD-500, RV-500, MD-500, SY-300, DD-5, DD-7, DD-20, PH-3, AW-3
Catalinbread: Semaphore, Belle Epoch Deluxe
Chase Bliss: All pedals except Brothers
Cusack: Tap-A-Whirl, Tap-A-Delay, Tap-A-Phase, Tap-A-Scream
Electro-Harmonix: Deluxe Memory Man with Tap 1100 / 550, Super Pulsar, HOG2, Pitch Fork, Cock Fight
Eventide: H9, Timefactor, Modfactor, Pitchfactor, Space
JHS: Panther, Panther Cub, Emperor, Unicorn, Pink Panther
Line 6: AM-4, DL-4, DM-4, MM-4, M5, M9, M13
MXR: Echoplex Delay, Carbon Copy Deluxe
Strymon: Timeline, Mobius, BigSky, Flint, Deco, Dig, Brigadier, Deco, DIG, El Capistan, Flint, Lex, Riverside, Sunset
Walrus Audio: Bellwether, ARP-87, Vanguard, Descent
MIDI Clock Compatibility
Alexander Pedals: Oblivion, Super Radical, Quadrant
Boss: DD-500, SL-20 Slicer
Chase Bliss: All pedals except Brothers
Eventide: H9, Timefactor, Modfactor, Pitchfactor, Space
Electro-Harmonix: 8-Step Program
Line 6: M5, M9, M13
Meris: OttoBit Jr., Polymoon
Moog: MF-104M Delay, MF-104MSD Super Delay, MF-105M MIDI MurF, MF-108M Cluster Flux
Pigtronix: Echolution 2 Infinity
Source Audio: Orbital, Manta, Stingray, Gemini, Lunar, Mercury Nemesis Delay, Reflex
Strymon: Timeline, Mobius, BigSky
TC Electronic: Flashback X4, Alter Ego X4, Flashback Triple Delay, Ditto X4
Z-Vex: Super Seek-Trem, Super Ringtone, Super Seek-Wah
